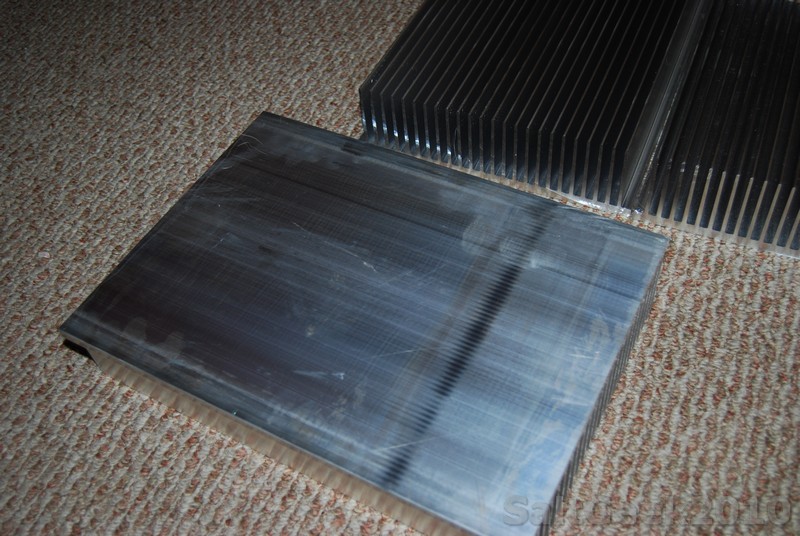

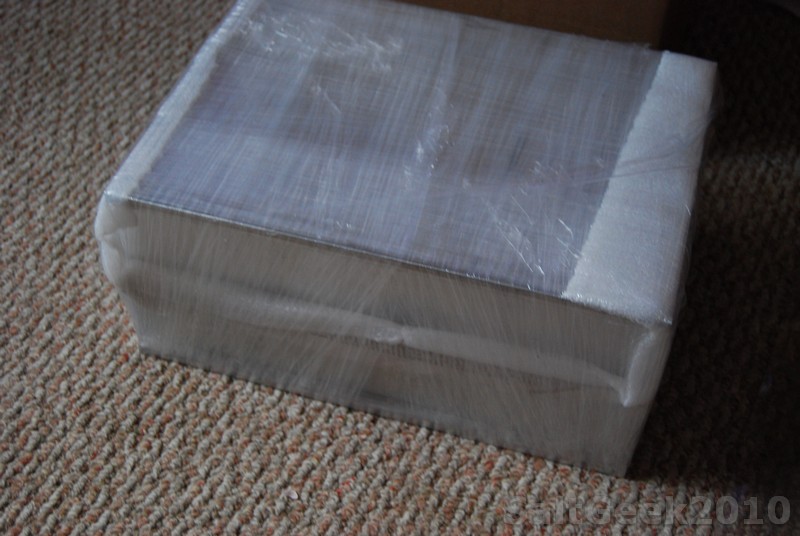

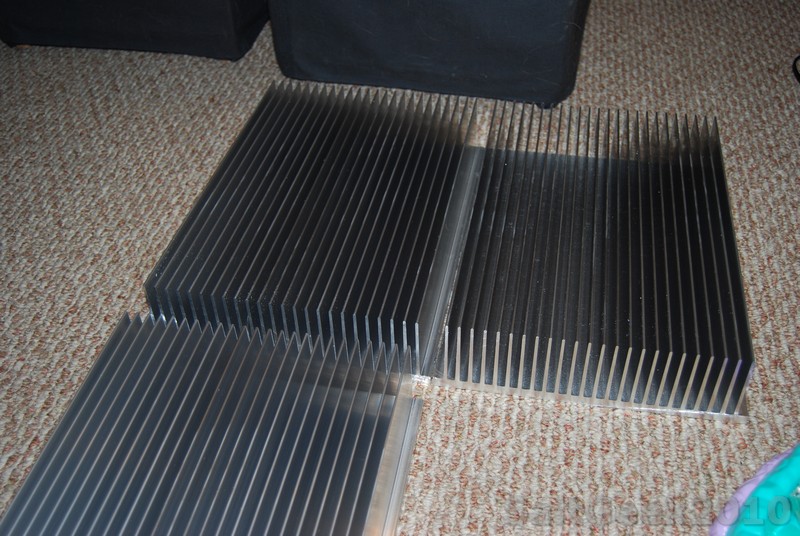

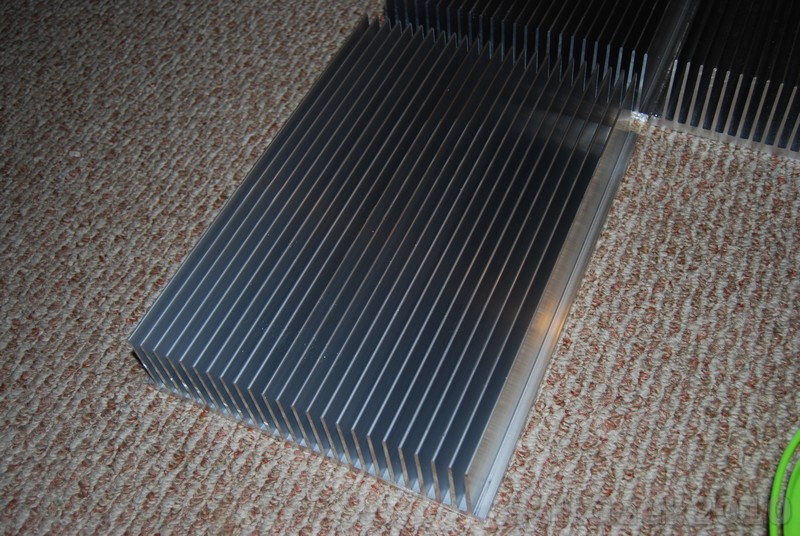

LED Lighting Build I will be documenting my LED Lighting Build here. Comments here: I replaced my 3 400w MHs with 3 LED Fixture that I built Heatsinks: 3 10.080 x 14" Heatsinks from heatsinkusa.com - $180.07 Shipped
LEDS: 4 x 24 LED kits which include the following items: 12 x XP-G R5 Cool White LEDs 12 x XR-E Royal Blue LEDs 12 lenses for the XR-E LEDs - 60 Degree lenses 1 x LPC-35-700 driver for the XR-E's 1 x LPC-60-1050 driver for the XP-G's 2 Power Cords 4 Wire Nuts$980 shipped Everything:

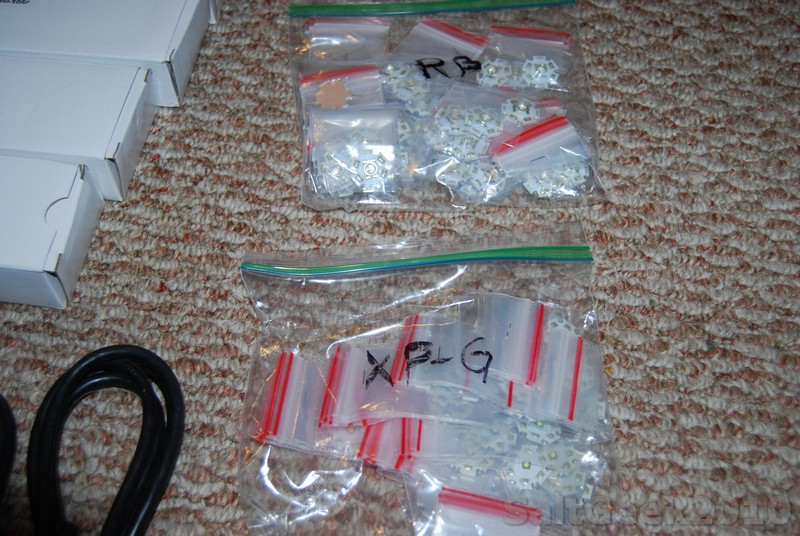

XP-Gs

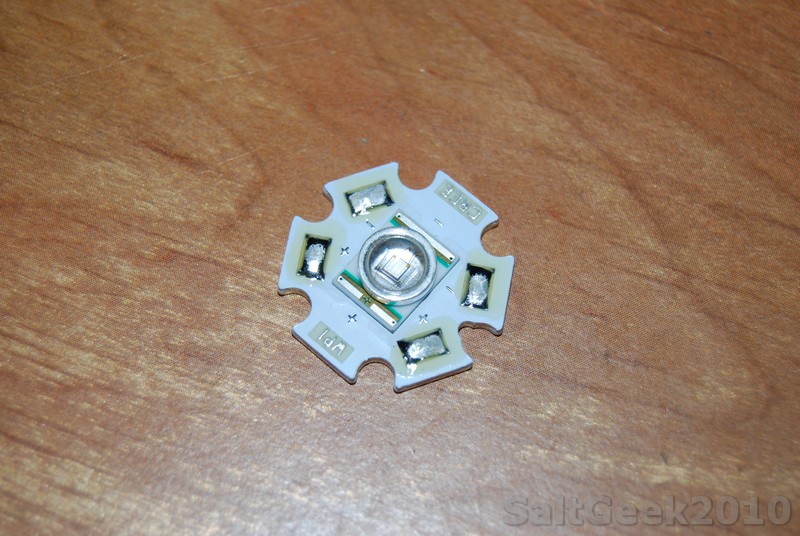

XR-Es

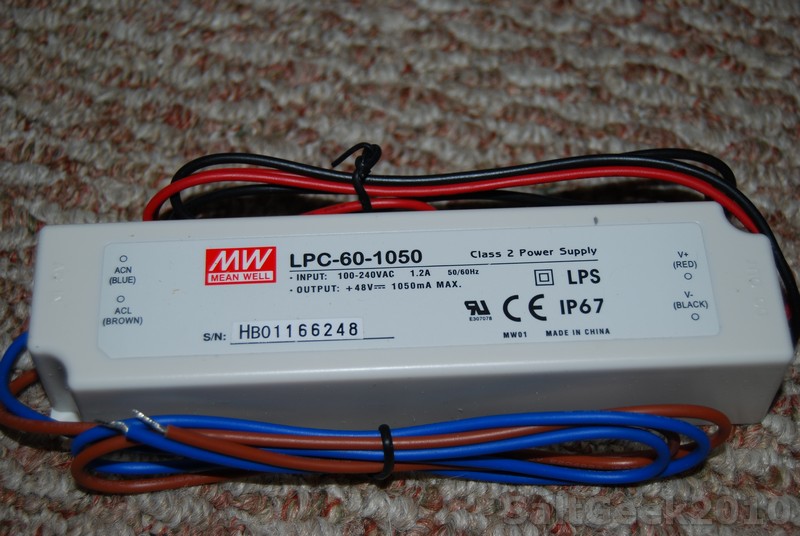

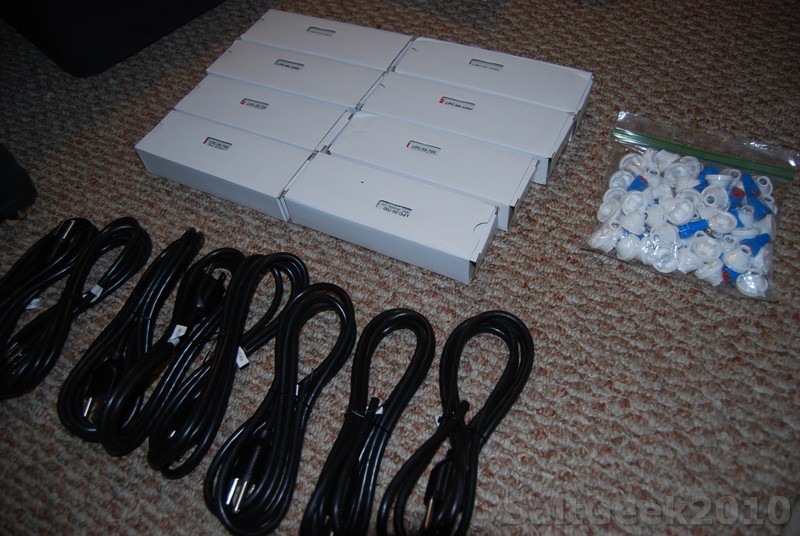

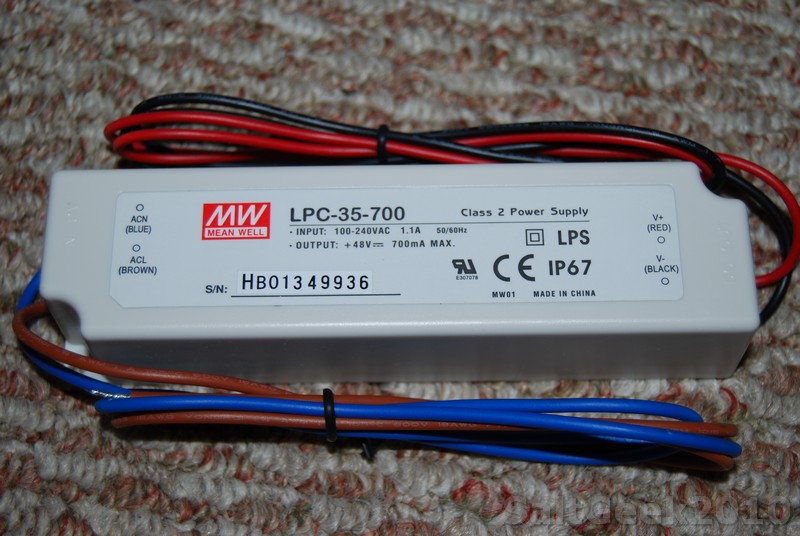

Drivers
Parts used Drill Bits: #30 for LED screws, 11/64" for Fan holders, 17/64" for Hangers Screws are a Self Drilling Phillips 6-20 x 1/2 Washers are a number 6 nylon. 22 Gauge wire from Radio Shack Thermal Compound from Radio Shack Drilling - about 2.5hours

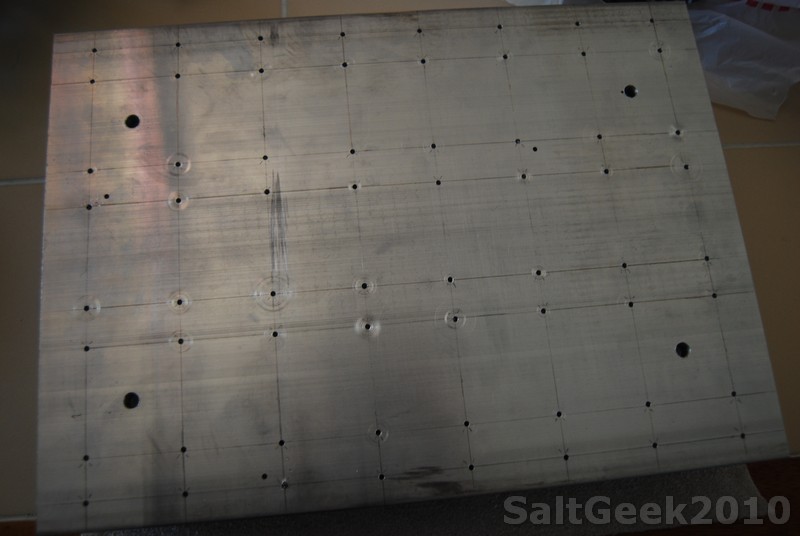

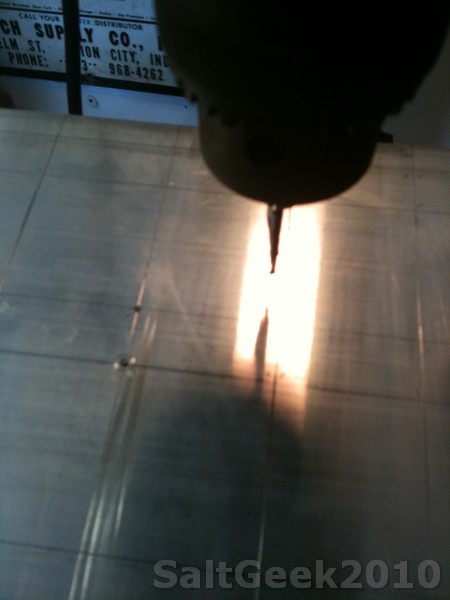

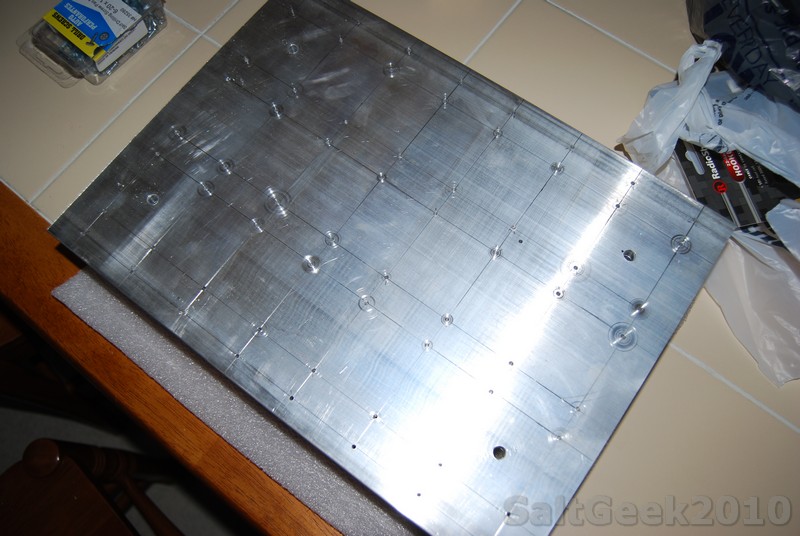

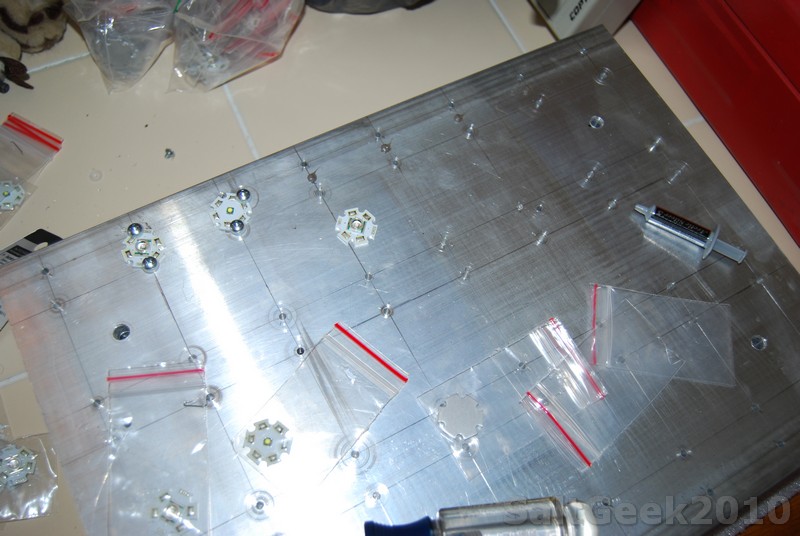

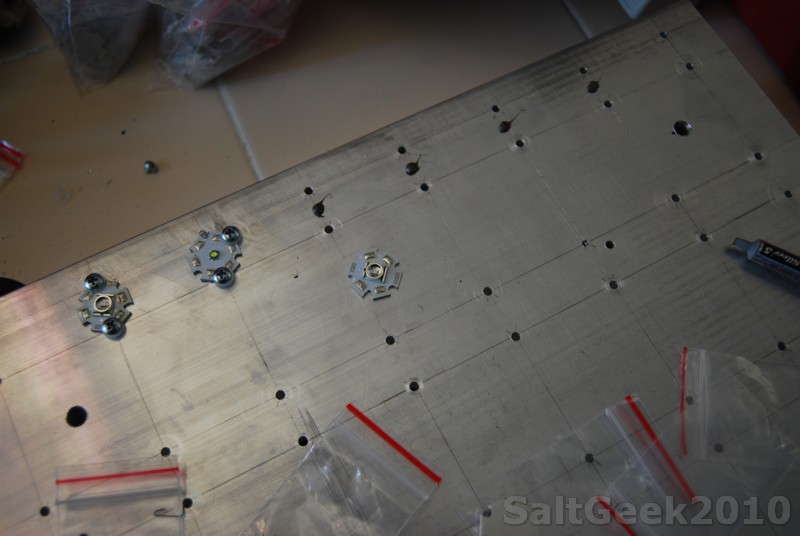

The holes

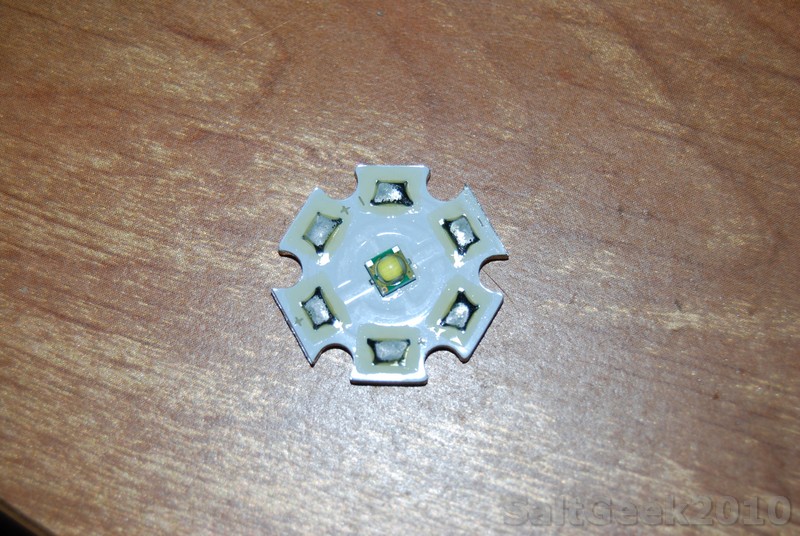

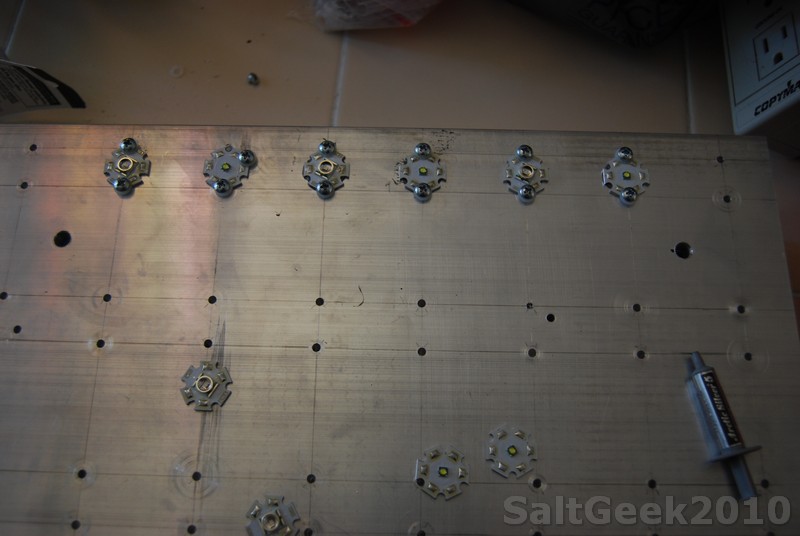

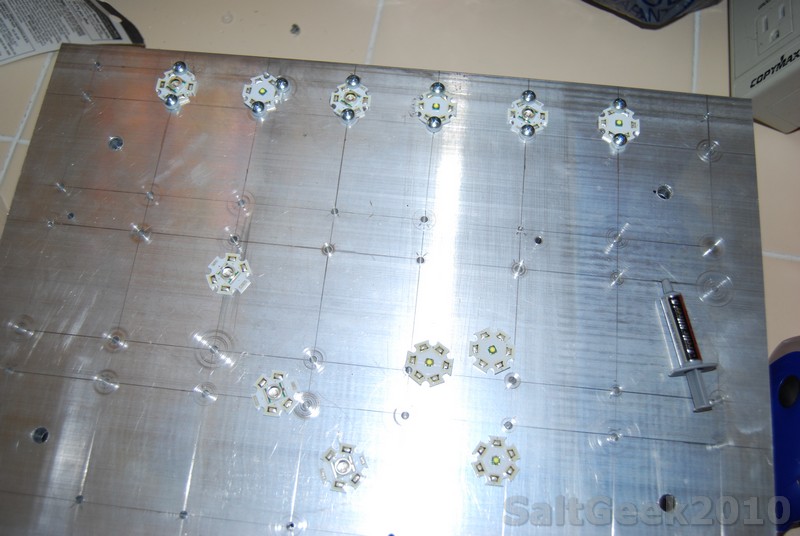

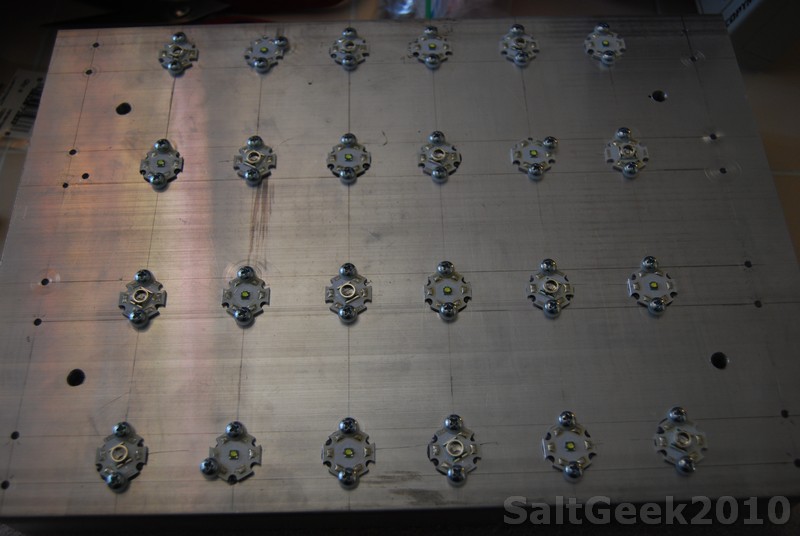

Mounting the LEDs with Thermal Compound, screws, and Nylon Washers - 30 minutes

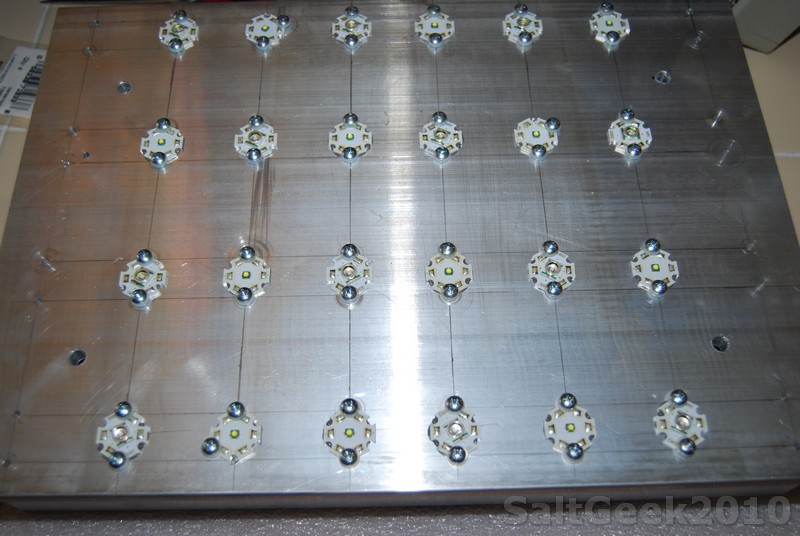

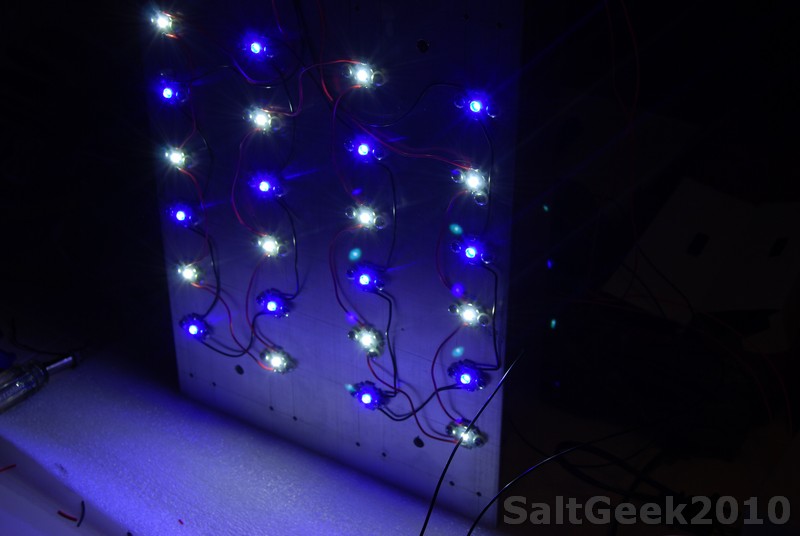

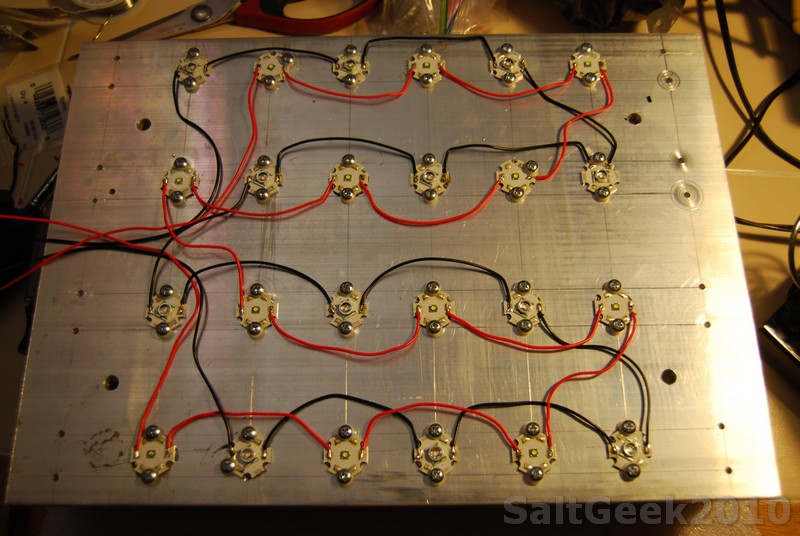

Wired up! - 1hour

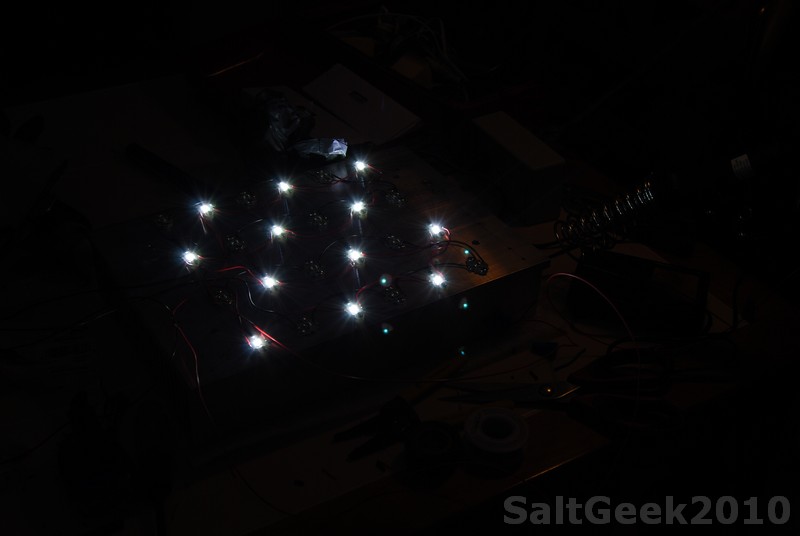

Whites
Blues

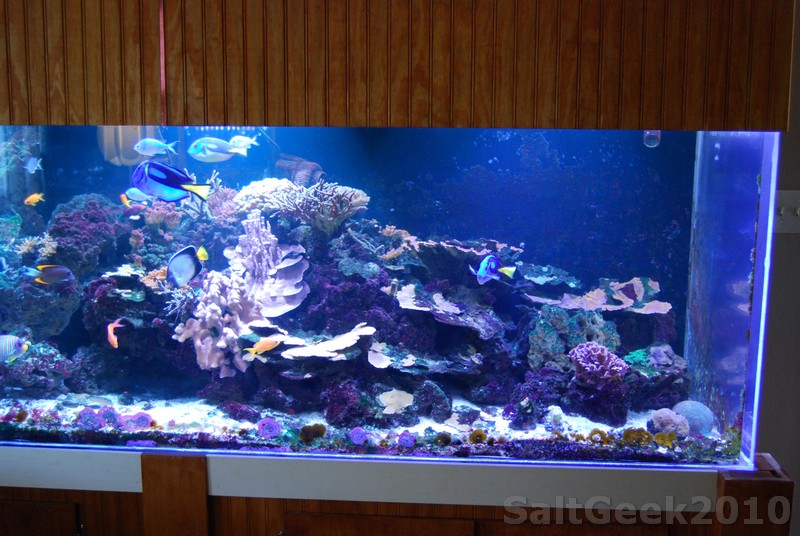

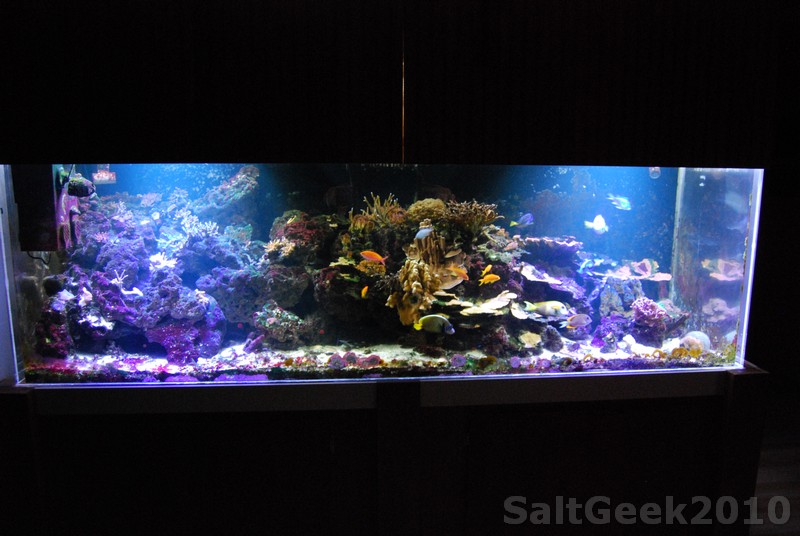

Both sets on

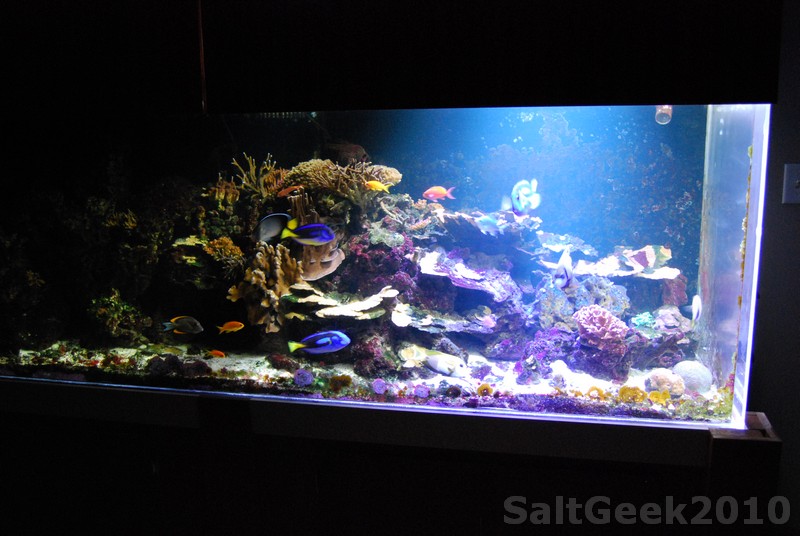

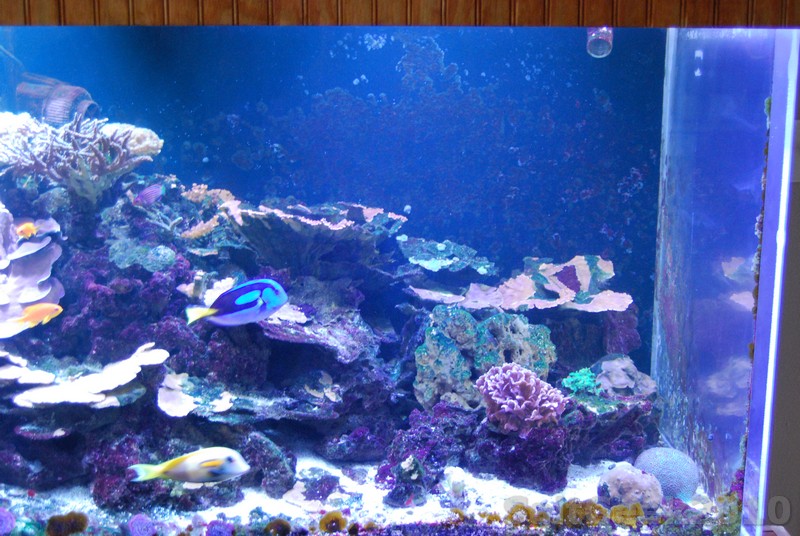

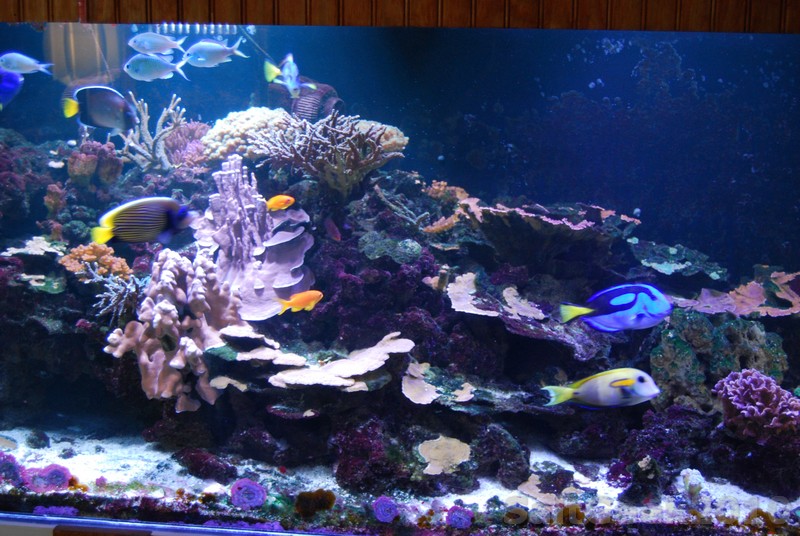

One Fixture on the tank With no optic lenses on
With a 60 degree lens on the Blues only.
Readings on a LUX meter LED with no lenses
LED with 60 Degree Lens on Blues only

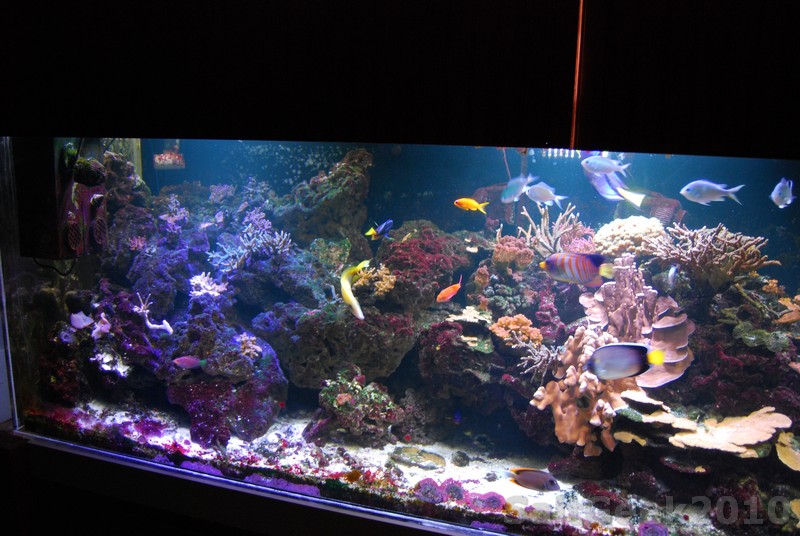

Mhs 2 inches closer to the water.

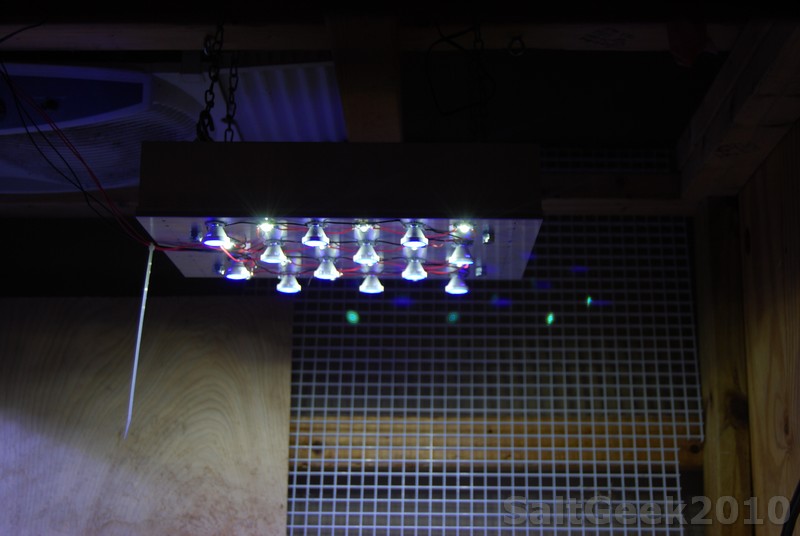

Just the LEDs on

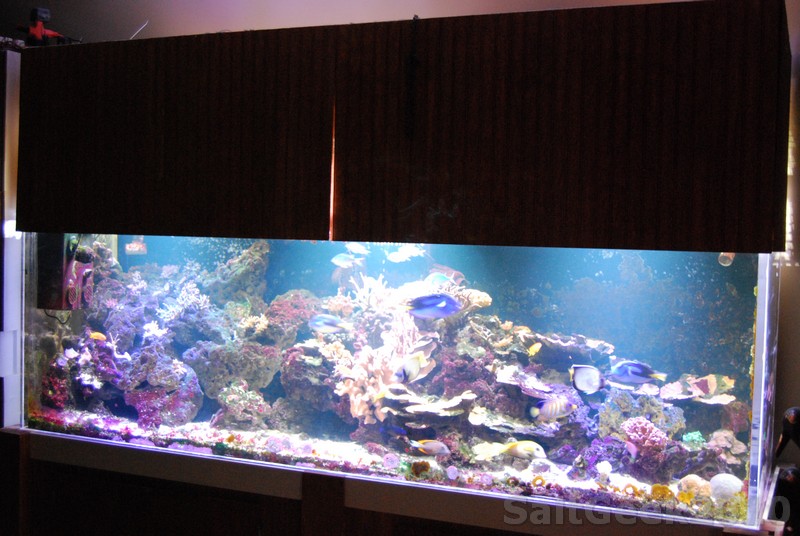

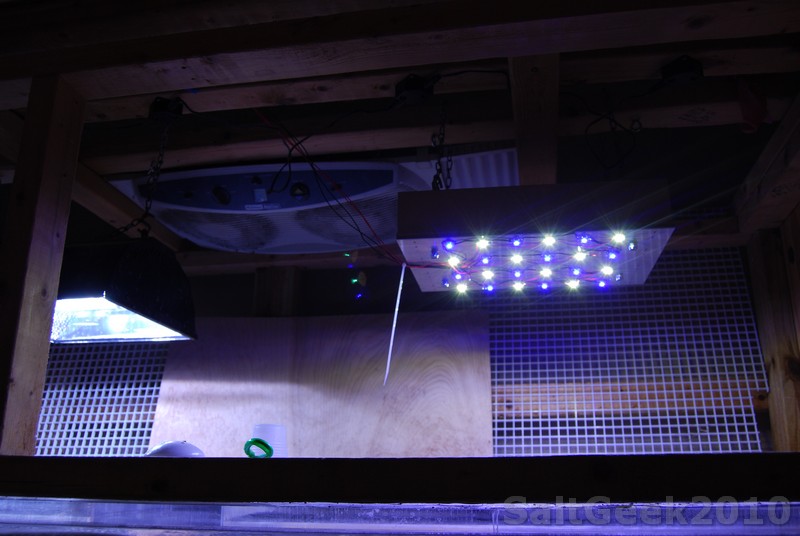

With the second fixture installed

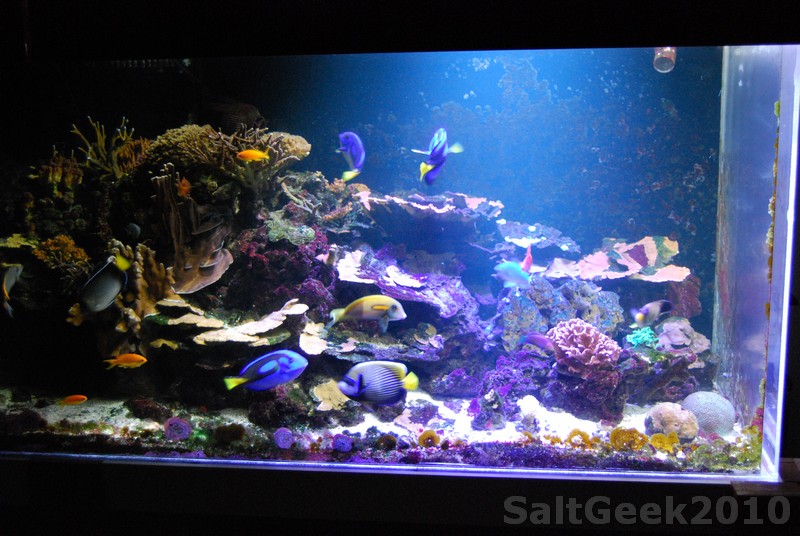

Wish just two LED fixtures on.

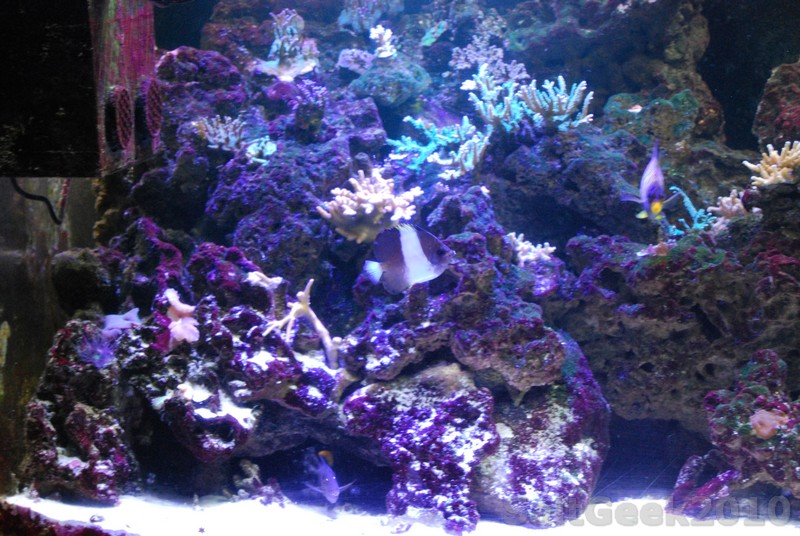

Not the best Picture of a coral

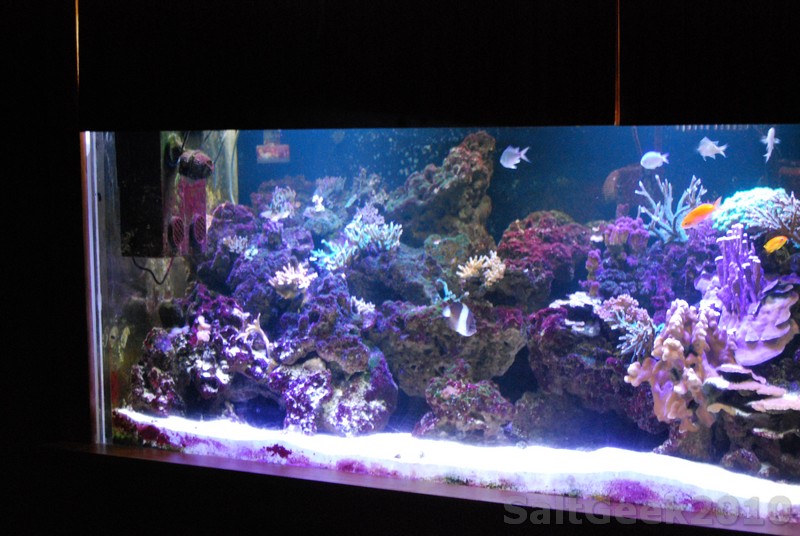

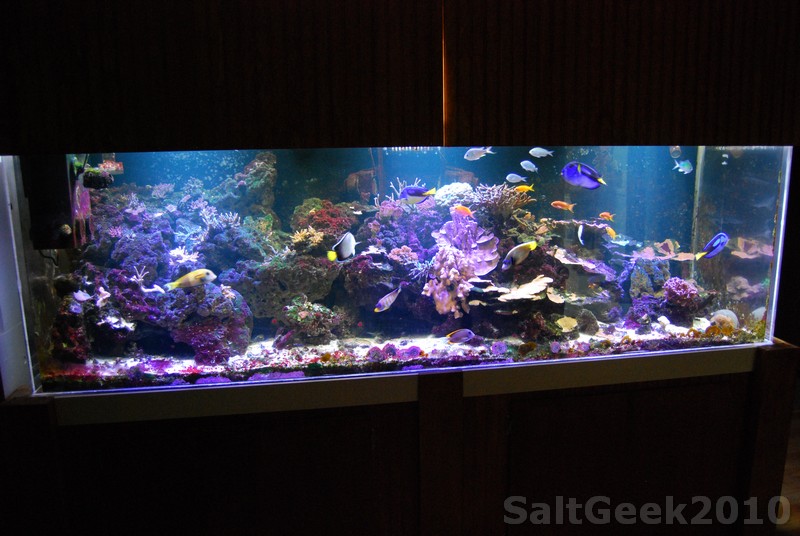

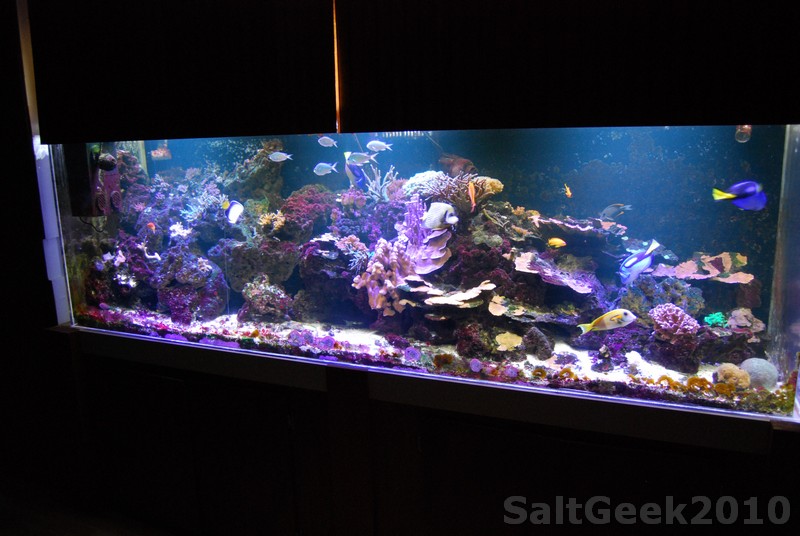

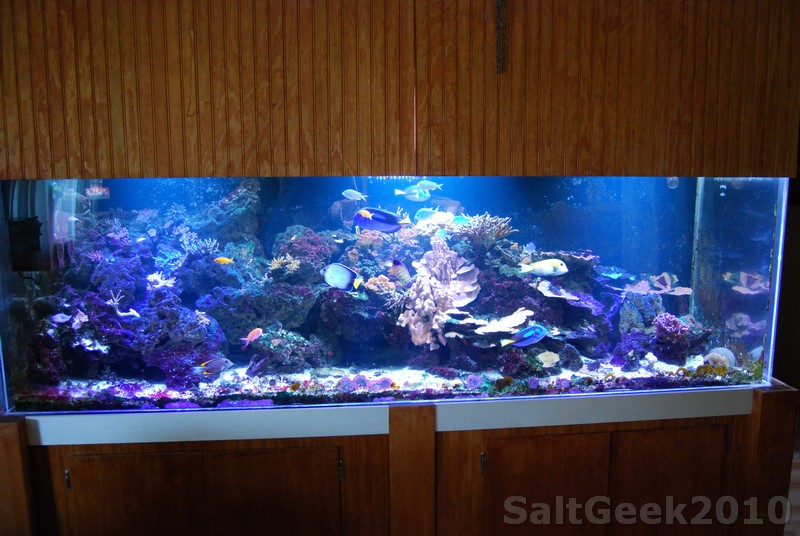

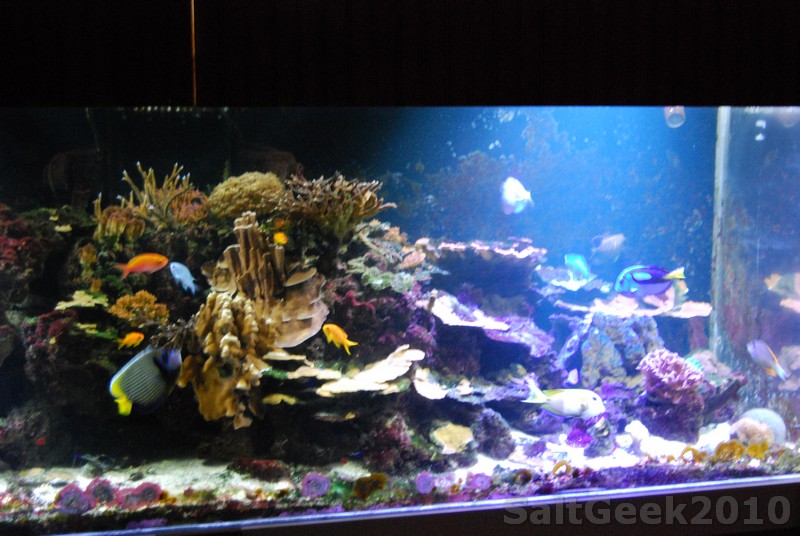

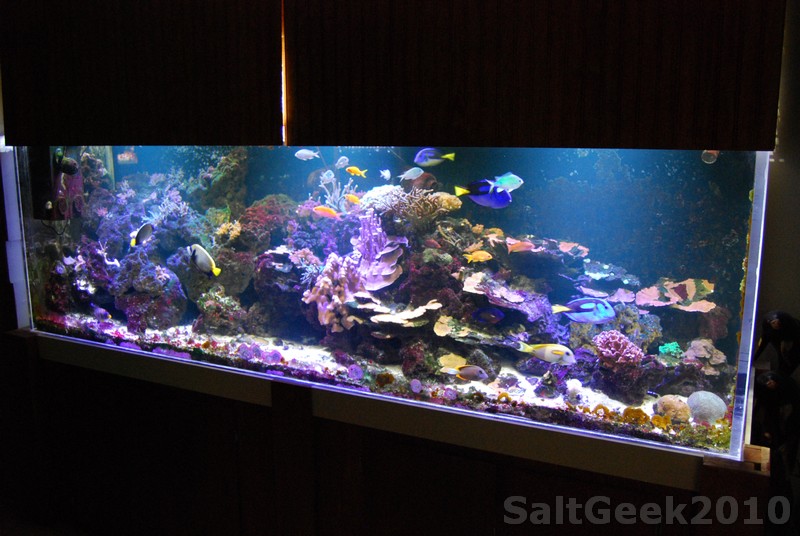

All 3 LED fixtures

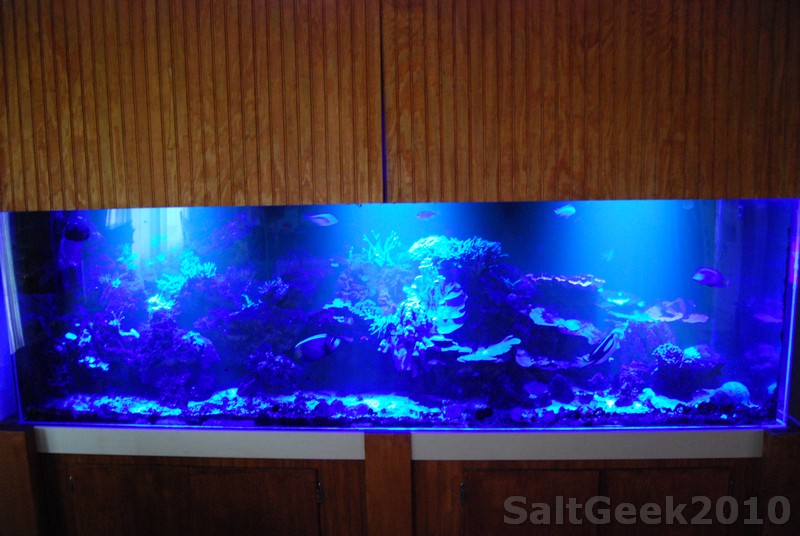

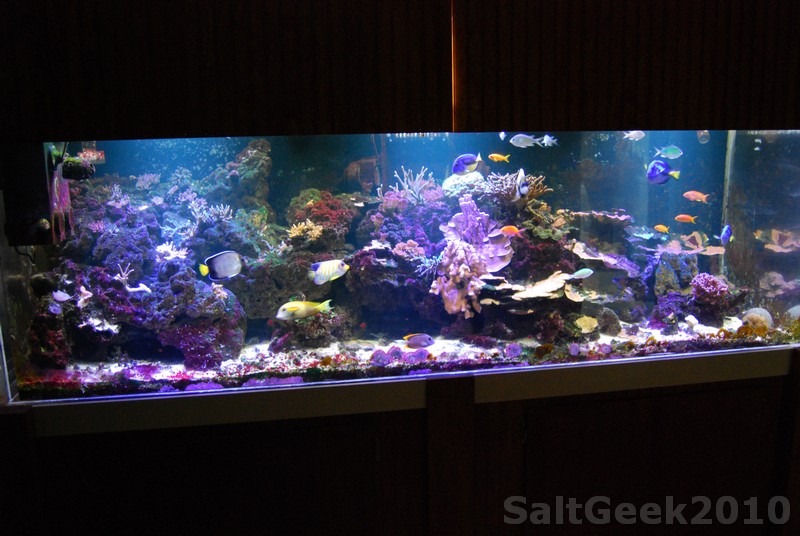

Just Blues

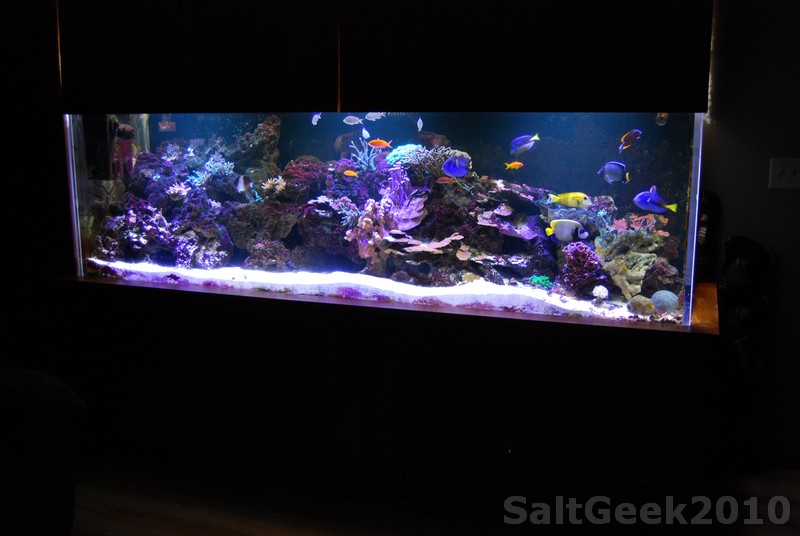

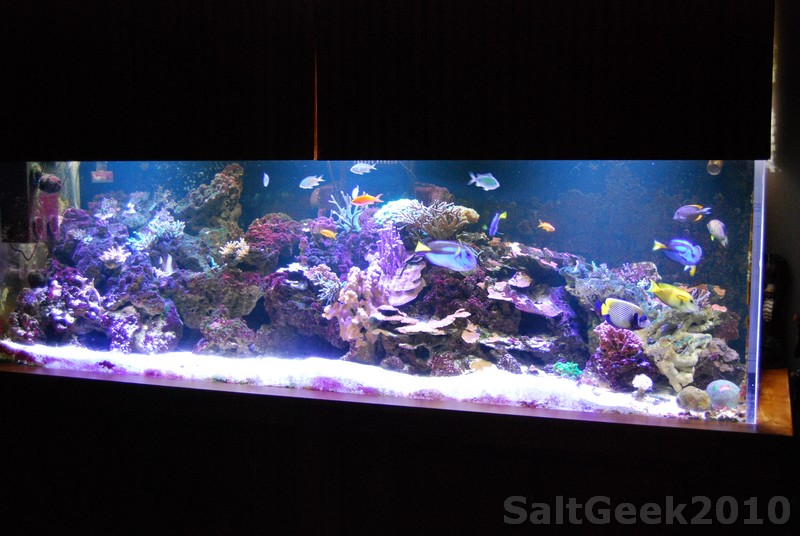

I added 24 more LEDs, 12 White and 12 Blue, I put 8 on each heat sink. This helped fill in some of the shadows Images from 4-11-2010
Images from 5-21-2010
With just the extra LEDs on

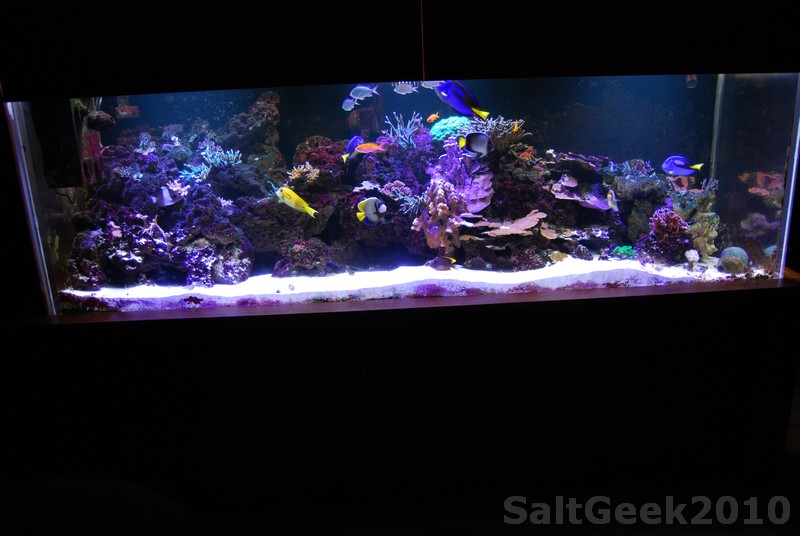

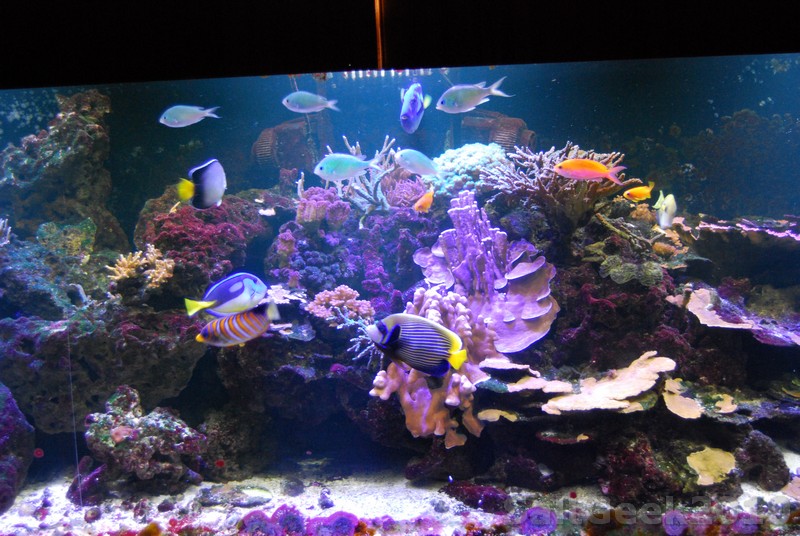

With all 21 LEDs on.
|
||||
|
||||
